Automatics Gang Tool Type CNC

Automatics Gang Tool Type CNC
Product Description

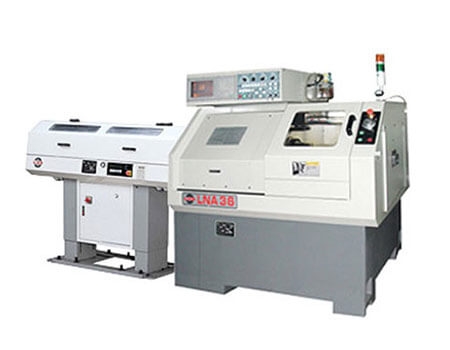

LNA-36, LNA-42

Best value, affordable and lean machine for all production shops.

  • High precision processing within 0.009mm for both roundness and surface precision.
  • Easy to connect with automatic bar feeder, robot loading system or manual loading Jobs.

Togrther with a rigid casting frame in compact size and an affordable price make LNA36 an approprate machine for voume production at turning workahop. Yet, machining with optional optical digit scale drives LNA36 being an ideal machine for 0.009mm precision required jobs at today's turning industry. Still more, its flexibility and expansibility of connection with automatic bar feeder or robot or designed manual loading system enhance LNA36 become a cost-saver in this ever-increasing competitive industry.


To achieve an automations, LNA36 is able to connect with either gang-type or arm-type robot which saves secondary loading/ unloading operations and fulfills the automation.

Rapid and Precision Tool Turret

A rigid and durable bi-direction 8-position tool turret ensures high repeated positioning accuracy and rigidity. Single indexing time in 0.35 seconds, continuous 180¢X change in 1.3 nozzle sprays coolant directly to the tool tips, makes a fast cooking, brings tools a longer life.

Model LNA36
Collet bar capacity, dia.(through bore) Ø36 (1.42")
Swing over bad Ø150 (Ø5.9")
Swing over alide Ø350 (Ø13.8")
Max. turning dia.(3-jaw power chuck) Ø125 (Ø5")
Max. turning length 100(4")
Height of spindle center (approx.) 1,000(39.4")
Spindle nose A2-4
Collet chuck type F42
Power chuck type Ø5"
Spindle/ draw bar through bore Ø37(1.46")
Motor power cont.(Mitaubishi) 3.7/5.5kw (5/7.5 HP)
Max. spindle speed 6,500rpm
Cross silide travel(X-axis) 200mm(8")
Longitudinal slide travel(Z-axis) 200mm(8")
Turning tool section 20mm Sq.
Boring tool reception Ø25mm(1")
Working feeds, X-axis and Z 0~10,000 mm/min
Rapid traverses, X-axis and Z 15 M/min
Feed force, X-axis and Z (Mitsubishi) 4Nm
Overall dimension (LxWxH) 1,530 x 1,260 x 1,620 (60.2"x19.6"x63.8")
Machine weight 1,260 kg
Hydraulic tank capacity 30L
Hydraulic pump motor 0.75kw
Coolant tank capacity 180L
Coolant pump motor 0.187kw
Lubrication capacity 2L, 10cc/10min
Total power required (Mitsubishi) 8kVA
